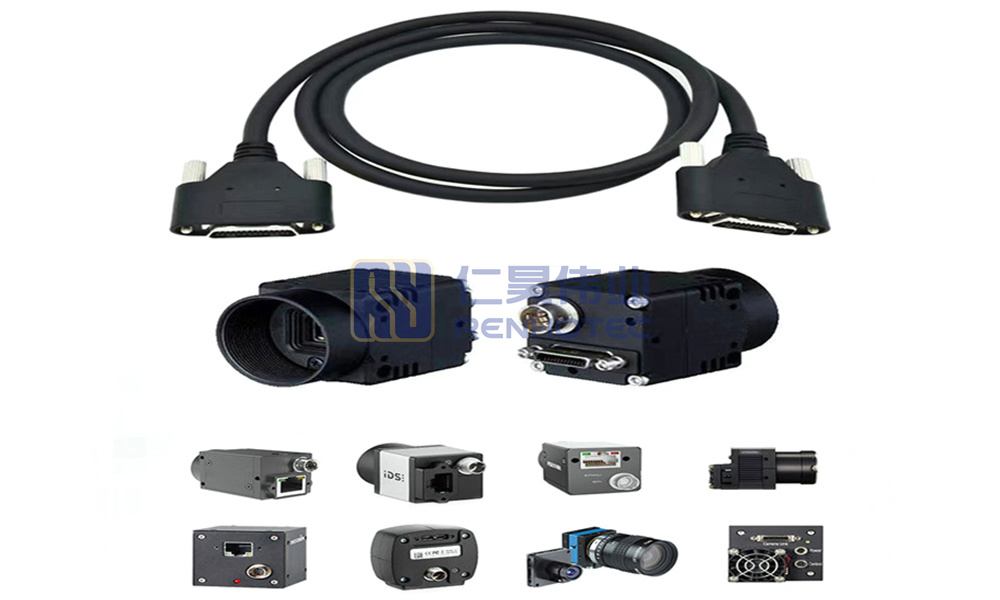

MDR Plug to MDR Plug Camera Link Cable Assemblies with Screw Lock for Machine Vision
- Real-time signal transmission, low latency
- 100% electronic function test
- Low noise and good performance when tilted
- Superior shielding function
- The wire harness is resistant to bending and highly flexible

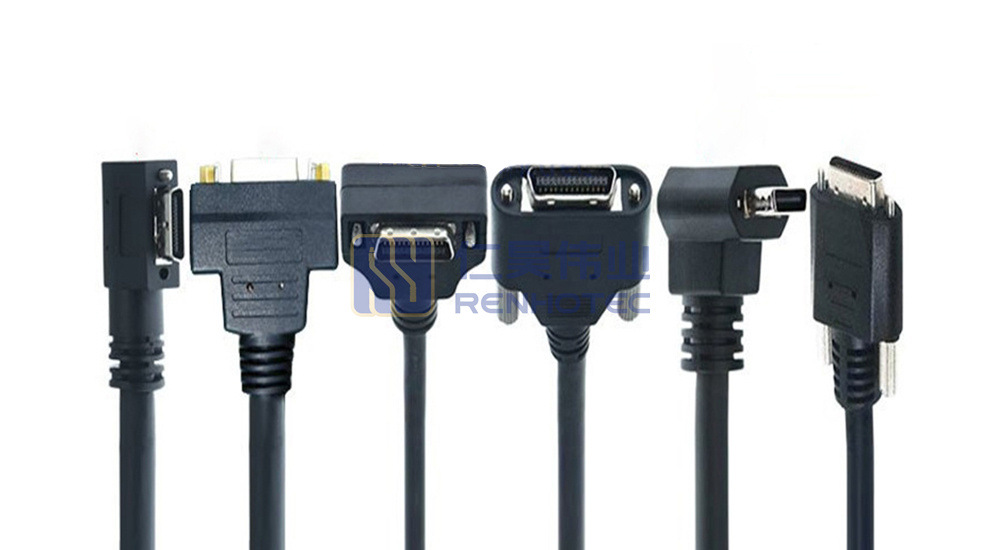

The industrial camera is a key component in the machine vision system. Its most essential function is to convert the optical signal into an ordered electrical signal. The industrial camera harness is used to connect its data transmission and maintain the power supply.Industrial camera harnesses can be divided into 6 categories according to the interface, Camera link line, IO trigger cable, industrial camera usb cable, industrial Ethernet cable, GigE Ethernet cable and CoaXPress cable.
The Camera Link cable is designed to meet the Camera Link interface standard, which defines the electrical, mechanical, and functional requirements for high-speed data transfer between cameras and image acquisition devices. The cable typically consists of a number of twisted pairs of wires, shielded to reduce electromagnetic interference and crosstalk.
When choosing a Camera Link cable, it is important to consider factors such as cable length, connector type, and cable quality. The cable should also be compatible with the camera and image acquisition device being used.
Application Scenarios
1. Industrial imaging technology
2. Machine Vision System
3. Industrial cameras
4. Scan on pipeline processing
5. Product testing
6. Image recognition
7. Factory Automation System

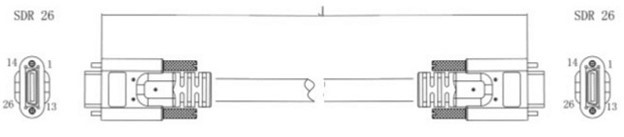

Product Specification

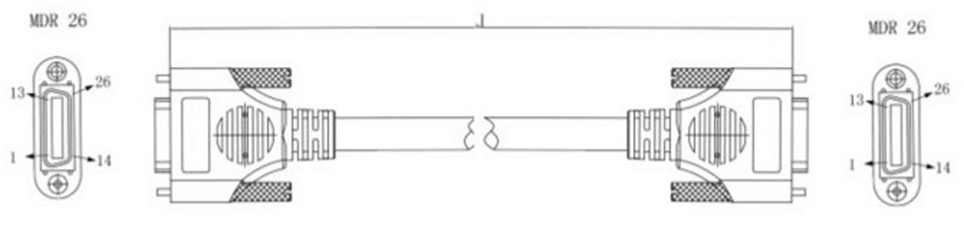

Cable Style | MDR to MDR |
||
---|---|---|---|
Cable 1st Connector | MDR Screw-on Plug |
||
1st Connector Number of Positions | 26 Pin |
||
1st Connector Orientation | Straight |
||
1st Connector Mounting Type | Cable Type |
||
1st Connector Contact Termination | Solder |
||
Cable 2nd Connector | MDR Plug |
||
2nd Connector Number of Positions | 26 Pin |
||
2nd Connector Orientation | Straight |
||
2nd Connector Mounting Type | Cable Type |
||
2nd Connector Contact Termination | Solder |
||
Cable length | 1m |
||
Cable Color | Black |
||
Temperature Range | -40°C to +105°C |
||

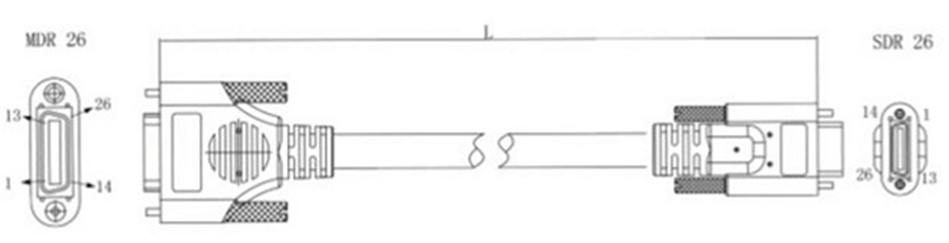

Cable Style | MDR to MDR |
Cable 1st Connector | MDR Screw-on Plug |
1st Connector Number of Positions | 26 Pin |
1st Connector Orientation | Straight |
1st Connector Mounting Type | Cable Type |
1st Connector Contact Termination | Solder |
Cable 2nd Connector | MDR Plug |
2nd Connector Number of Positions | 26 Pin |
2nd Connector Orientation | Straight |
2nd Connector Mounting Type | Cable Type |
2nd Connector Contact Termination | Solder |
Cable length | 1m |
Cable Color | Black |
Temperature Range | -40°C to +105°C |
Cable Style | MDR to MDR |
---|---|
Cable 1st Connector | MDR Screw-on Plug |
1st Connector Number of Positions | 26 Pin |
1st Connector Orientation | Straight |
1st Connector Mounting Type | Cable Type |
1st Connector Contact Termination | Solder |
Cable 2nd Connector | MDR Plug |
2nd Connector Number of Positions | 26 Pin |
2nd Connector Orientation | Straight |
2nd Connector Mounting Type | Cable Type |
2nd Connector Contact Termination | Solder |
Cable length | 1m |
Cable Color | Black |
Temperature Range | -40°C to +105°C |
Renhotec Information
We have two factories, one is located in Dongguan city, another in Jiangmen city. Visitors are always welcome.
RF Connector Selection
Factors to consider include frequency range, impedance, insertion loss, durability, mating cycle, and environmental conditions. These factors are important to ensure optimal performance of Renhotec RF connectors.
Customization and Sample Testing
Yes, we offer customization services to meet your specific needs. Please provide your specification, performance requirement or drawing, photos, or samples for evaluation.
Absolutely, Renhotec provides samples for testing before proceeding with a bulk order.
Order Lead Time
Lead time depends on the product type, quantity, and production status. For items ready in stock, the lead time is 3-5 working days. For common items, the lead time for 10K is 10-12 working days. The accurate lead time can be provided once the order is confirmed.
Shipping and Packaging
For small quantities, we ship by express. For larger quantities, we ship by sea, air, railway, or truck.
Our standard packaging methods include blister box/polybag with label in a carton box. We can also package as per request.
Payment Methods
Accepted payment methods include T/T, Paypal, etc.
Quality Assurance
Yes, we can provide regular inspection reports. If you have a special requirement, please let us know.
👋Let us know how we can help
We look forward to hearing from you! We will respond within 24 hours.
